Butt Fusion Welding Machine

Here we introduce our monster to you,1600 butt fusion machine.This machine even higher than any human.with very strong power and lots of optionals,you can choose economic type or PRO type.Standard fusion range is from 1200 to 1600mm,we can make it from 800 for minimum range.strong iron clamp and inserts,it is really a sharp tool for your big project......

Send Inquiry

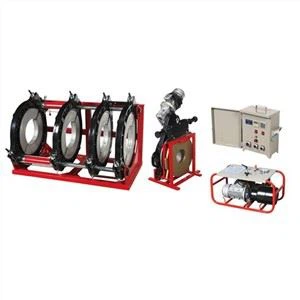

pipe joint machine 1200

Model	DH1600
Material	PE,PP,PVDF
Fuse Range	1200,1400,1600
Work Enviroment	-5~45℃
Working Voltage	380V±10%,50HZ
Total Power	53.5KW
Total voltage	100A
Maximum Pressure	25MPA
Cylinder Section	88.36cm²
Available Hydraulic Oil	40-50mm²/s,40℃
Tank	70L
Max Heater Temperature	270℃
Heater Error	≤±7℃
Frame Size	296023502350
Hydraulic Station Size	660480750
Packing Size	278023002350
Total Weight	7900KGS

BELOW ARE OPTIONALS

1.Hand carry remote controller

For such a big machine,more convenient to use a remote controller,workers can focus on the pipe jointing process.This remote control consider to be a CNC system,easy to operate,welding automatically.There is also a emergency stop button on it,to avoid the risk during the welding process

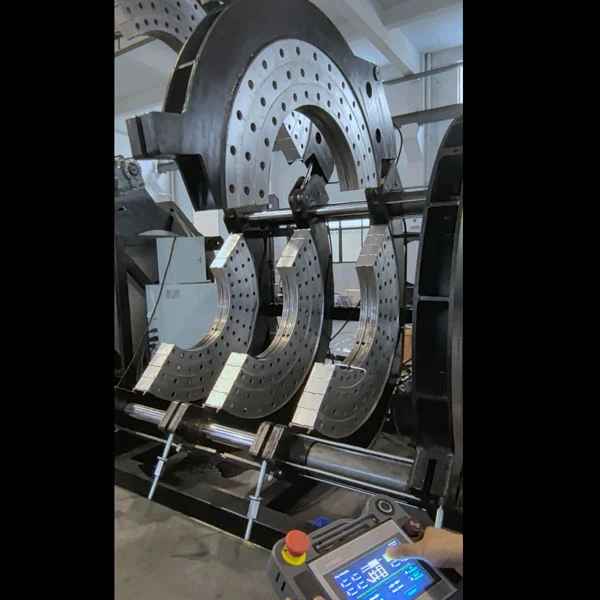

remote control

pipe jointing machine remote control

2.Hydraulic Open Clamp System

You can open the clamps,by hand carry remote control,click the touch screen,make your work more efficient.There is 4 cylinders hiding behind the upper clamps,it will open and close by hydraulic system

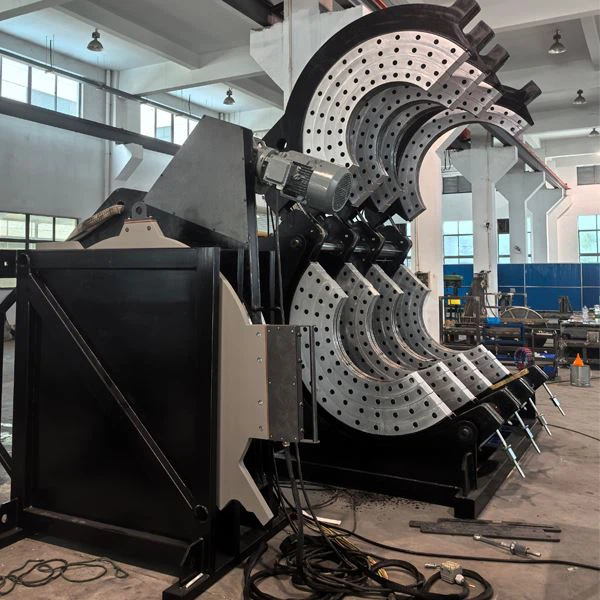

hydraulic open clamp-1600

3.Trolley is also available,four wheels,tyres can follow your requirements

Our Factory

For alumuminum inserts,machine frame,heater,trimmer and hydraulic system,we have our own workshop to produce such parts,then install a whole machine by workers
