PE Pipe Welding Butt Fusion Machine
Description
PE Pipe Welding Butt Fusion Machine with Removable PTFE coated heating plate with separate temperature control system and electric facer. Low starting pressure ensures reliable welding quality of small pipe. Changeable welding position enables to weld various fittings more easily. Separate two-channel timer records time in soaking and cooling phases with time alarm.
Main Body
The main body supports and centres the plastic pipes with two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.
Milling Cutter
The milling cutter is the tool which clean and smooth the both ends of the pipes before the heating process .
Heater
The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates.
Hydraulic Unit
The necessary electric will be transferee! to the heater and milling cutter by means of this unit and to the main machine by the hydraulic pressure.
Specification
Product Name | PE Pipe Welding Butt Fusion Machine |
Input Voltage | 380V±10% 50/60Hz |
Heater Temp | 0℃~270℃（±7℃） |
Applied Material | PE、PP、PVDF |
Model | DH450 |
Welding Range | 280mm-450mm |
SDR | SDR9 TO SDR41 |
Working Pressure | 0-6Mpa |
Heater Power | 5.2KW |
Hydraulic Pewer | 1.5KW |
Facer Power | 1.5KW |
Total Power | 8.2KW |
Total Weight | 400KG |
Tool Bag | screw-driver ,wrech,bolts,blades,pt100 |
Feature
1. Low order quantity
2. Fast delivery
3. Very competitive price
4. Service is very good
5. Solve some problems of customers in time

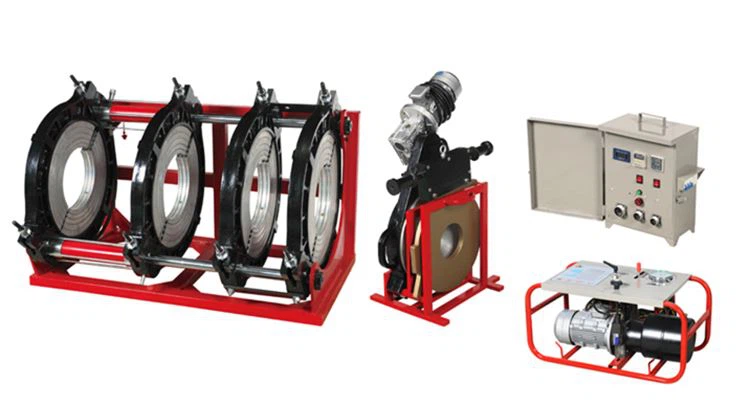

Product Display
